Instructions:

The Demon Killer 8-in-1 Coil Prebuilt Set are pre-coiled exotic setup that eliminates the time consuming hassle of wire configurations and the convenience of different types of heating elements and sizes.

Each coil is built in exotic configurations, machine-twisted for precise and consistent building material.

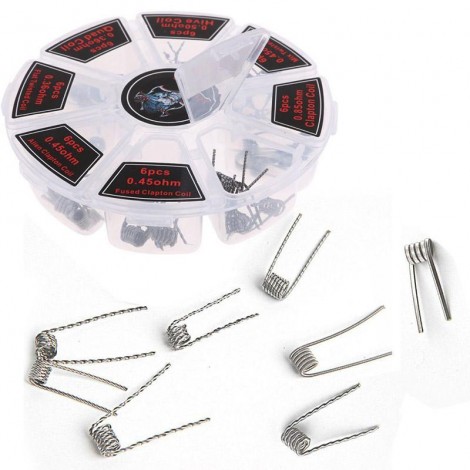

Built for building enthusiasts, it offers 8 different types of wire for a huge array of coiling options in an efficient open-and-close box.

With a plethora of building possibilities within a simple box setup, the Demon Killer 8-in-1 is highly recommended for all builders.

Parameter:

• 6 x Tiger Coils
  • 2 Wires Total
  • Diameter of inner wire 4mm (26 AWG)
  • Thickness of outer flat wire is 0.2mm
  • Width of outer flat wire is 0.8mm
  • 0.36 ohm resistance
• 6 x Quad Coils
  • 4 Wires Total
  • Diameter of Wire is 0.32mm x 4mm (28 AWG x 4)
  • 0.32 ohm resistance

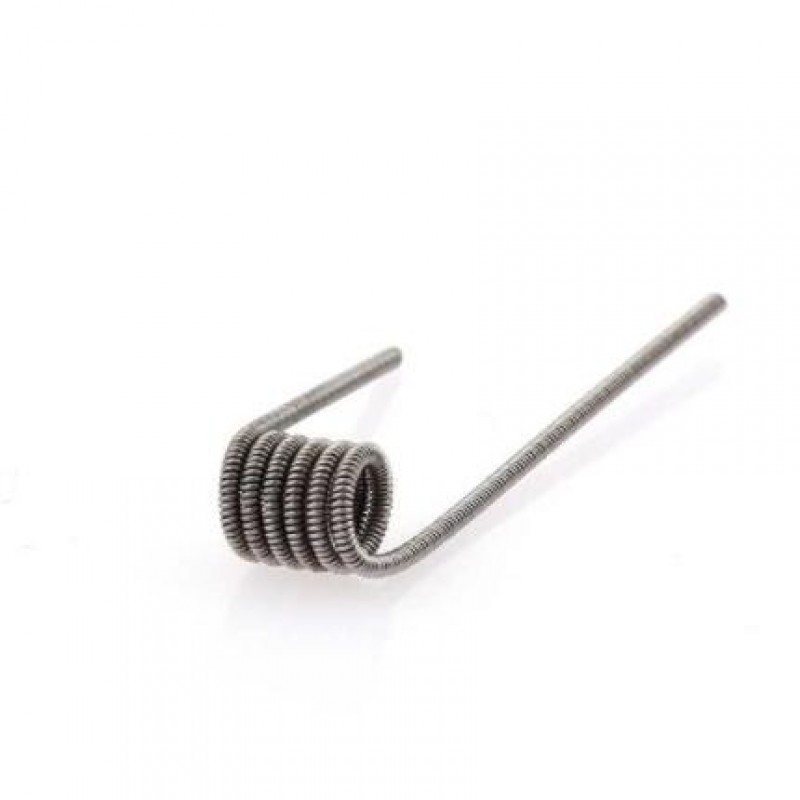

• 6 x Clapton Coils
  • 2 Wires Total
  • Diameter of inner wire 0.4mm (26 AWG)
  • Diameter of Outer wire 0.2mm (32 AWG)
  • 0.85 ohm resistance
• 6 x Clapton Alien Coils
  • 2 Wires Total
  • Diameter of outer wire is 0.2mm (32 AWG)
  • Thickness of inner flat wire 0.3mm
  • Width of inner flat wire 0.8mm
  • 0.45 ohm resistance
• 6 x Clapton Fused Coils
  • 3 Wires Total
  • Diameter of inner wire 0.32mm + 0.32mm (28AWG x 2)
  • Diameter of outer wire 0.2mm (32 AWG)
  • 0.45 ohm resistance
• 6 x Twisted Mix Coils
  • 2 Wires Total
  • Diameter of wire 0.4mm (26 AWG)
  • Thickness of flat wire 0.2mm
  • Width of flat wire 0.8mm
  • 0.45 ohm resistance
• 6 Hive Coils
  • 4 Wires Total
  • Diameter of wire (0.25mm+0.25mm) x2 / (30+30AWG)x2
  • 0.5 ohm resistance
• 6 x Twisted Flat Coils
  • 2 Flat Wires Total
  • Thickness of flat wire 0.2mm
  • Width of flat wire 0.8mm
  • 0.36 ohm resistance

Package Includes:

• 1x Demon Killer 8 in 1 Coil Kit 48pcs
• 1x Allen Key
