Instruction

Geekvape Max100 Kit contains a 100W box mod and a 5.5ml Z Sub Ohm Tank. Utilizing new tri-proof tech, Max100 comes with IP68-rating water & dust resistance, as well as a higher level of shock resistance, which will bring the device greater protections.

Besides, with the A-LOCK design, the accidental press can be avoided, and you can prevent the inadvertent button presses from overheating your coils or your mod.

Max100 Kit supports single 21700/18650 battery, and a 18650 battery adapter is included in the package. Z Sub Ohm 2021 Tank has 5.5ml capacity, features leakproof top airflow system. It supports Z0.15, Z0.2, Z0.25DC and Z0.4 ohm coil.

Parameter

• 2nd Gen of Geekvape tri-proof tech
• 100W max output, new Aegis Max
• New 1.1 inch full screen
• Single 21700/18650 battery
• Paired with 5.5ml Z Sub Ohm 2021 Tank
• Type-C charging port with flip cover on the top
• IP68-rating water & dust resistance, shock resistance
• A-lock function design
• Leakproof top airflow system
• Enlarged filling hole & airflow for larger air inflow
• Adopts Z0.15, Z0.2, Z0.25DC and Z0.4 ohm coil

Dimensions:

• Brand: Geekvape
• Unit: 1 Set
• Output Power: 5W-100W
• Input Voltage: 3.2V-4.25V
• Output Voltage: 0-8.5V (max 8.5V)
• Minimum Voltage: 3.2V+-0.1V
• Resistance Range: 0.1ohm-3.0ohm
• Longest Output/Vaping Time: 10s
• Temperature Control:
• 100C-315C(1C step-by-step)
• 200F-600F(5F step-by-step)
• Battery: 21700/18650 (single battery, not included, replaceable)
• Charging: Type-C 5V/2A
• Display Screen: 1.1 inch TFT color screen
• Capacity: 5.5ml
• Dimension: 42.06 * 31.5 * 143.8mm
• Package: Gift Box


Package contain:

• 1pc GeekVape Max100 Mod
• 1pc GeekVape Z Sub Ohm 2021 Tank (5.5ml)

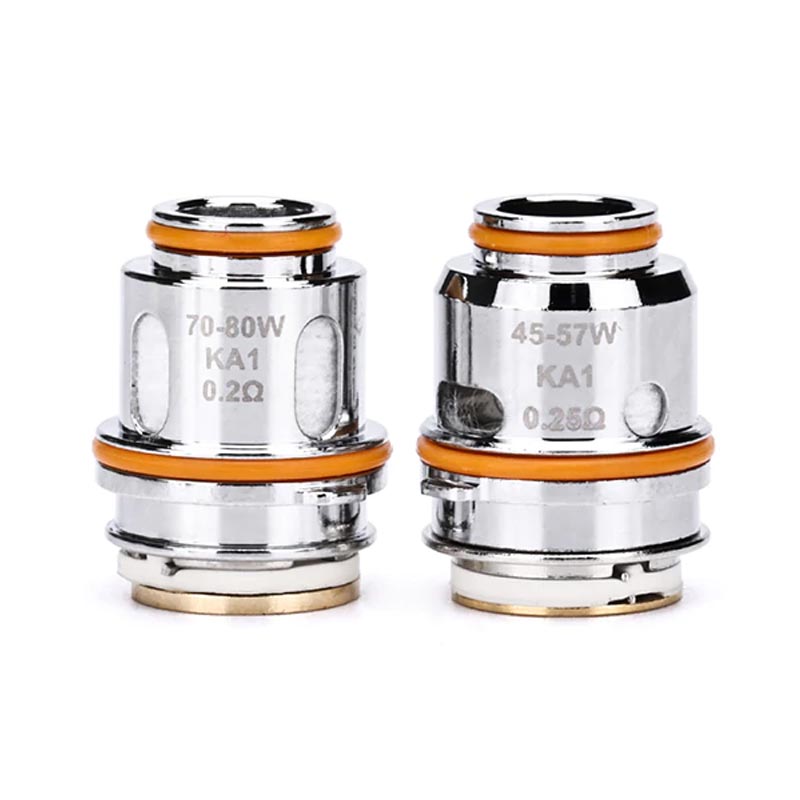

• 1pc GeekVape Z 0.2ohm Coil (Pre-installed, 70-80W)
• 1pc GeekVape Z 0.25ohm Coil (Spare, 45-57W)
• 1pc Coil Tool
• 1pc Spare Parts Pack
• 1pc Spare Glass Tube (5.5ml)
• 1pc USB Type-C Cable
• 1pc 18650 Battery Adapter
